Think of a garage opener system as a family: the opener is the parent, the remotes are unruly children, and the keypad is the responsible older sibling. Getting all these pieces to talk to each other (safely!) takes a little coordination. Overhead Door is a major brand in the garage world, known for reliable remotes and accessories. But *syncing* a keypad with these remotes—so they work seamlessly—has a few steps, and sometimes a bit of trial and error.
How Overhead Door Garage Remotes and Keypads Communicate
Here’s the thing: garage door remotes and keypads both talk to the same opener, but it isn’t like pairing headphones via Bluetooth. Instead, each device uses radio signals and rolling codes for security. That means your Overhead Door keypad doesn’t technically “sync” with the remote itself—instead, both sync (or “pair”) directly to the opener.
Picture it like having both your phone and your laptop connect to the same Wi-Fi. They don’t connect to each other, but they’re both authorized to use the network. Overhead Door uses its own coded signals to make sure only the devices you program can open your garage. So, you’re not linking your remote to your keypad—you’re linking each device to the opener.
This avoids confusion and keeps things secure. After all, you wouldn’t want your neighbor’s garage keypad to open your door! Most Overhead Door openers use “learn” or “smart” buttons, which start the process to add (or erase) remotes and keypads from memory.
Step-by-Step: Syncing an Overhead Door Keypad and Remote
Let me explain how the process generally works when you’re pairing a keypad and a remote with an Overhead Door opener. It’s not rocket science, but the steps have to be followed exactly—or things won’t work.
- Reset the opener’s memory (optional): If you want to clear all old devices, hold the “learn” button on the opener until the indicator light goes out (usually 6-10 seconds). This wipes the slate clean.

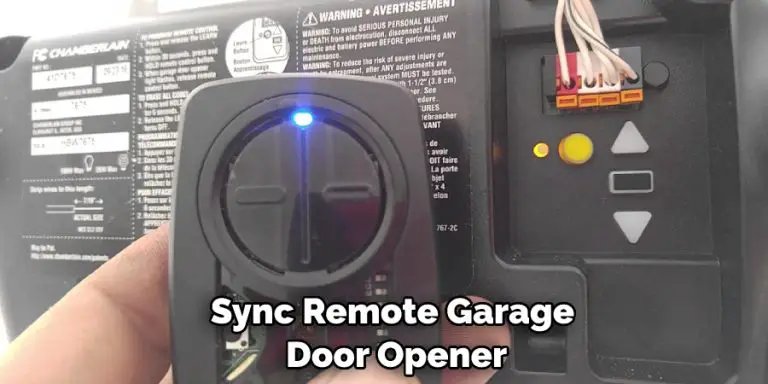

- Pair the remote: Press and release the “learn” button on your garage opener (usually near the light bulb in the overhead motor unit). The indicator light turns on. Then, within 30 seconds, press the button on your remote you want to program. The indicator blinks or clicks—done!
- Program the keypad: Most Overhead Door keypads have you enter a PIN, then press a special button (often “Program” or “Enter”). While the “learn” light is on, enter your PIN and press Enter. Wait for the light or click to confirm. That’s it.
If you mess up a step, you often have to start over. Batteries, code compatibility, or just a miscounted second can throw things off. But you never have to sync the keypad *with the remote*. Both devices are independent, but controlled by the opener’s memory.
Insight: Always check your opener’s manual—older Overhead Door systems might have slightly different instructions, or might not support newer rolling code technology.
Troubleshooting Overhead Door Keypad and Remote Sync Issues
Honestly, troubleshooting these systems can test anyone’s patience. If your Overhead Door remote works but your keypad doesn’t (or vice versa), it usually comes down to one of a few culprits: battery, code programming, or memory limits.
First, double-check battery life in both your remote and keypad. Sometimes, a weak battery will let you program a device but won’t send a strong enough signal to unlock the garage. Next, try reprogramming both devices—just like computers, garage openers sometimes get “confused” and need a fresh start.
Overhead Door systems usually have a maximum number of devices they’ll remember. If you’ve programmed too many (say, extra remotes for carpool buddies or ex-roommates), the opener could bump the oldest device off the list. Clearing the memory and starting fresh often solves those ghost-in-the-machine problems.
One especially tricky issue: using universal keypads. These can claim to work with many brands, but sometimes the coding doesn’t line up exactly. If you’re using a non-Overhead Door keypad or remote, check compatibility codes carefully, or you could be chasing your tail.
Why Overhead Door Keypad and Remote Pairing Matters for Security
Garage security often gets overlooked, but pairing your keypad and remote the right way is a big deal. Think about it: your garage is often the weakest link between your house and the outside world. If syncing goes wrong, you risk leaving the door open—or letting the wrong person in.
With Overhead Door’s rolling code technology, every time you press the remote or enter your keypad PIN, the “code” changes. It’s like a secret handshake that’s never the same twice. Hackers can’t simply record one signal and replay it. But this also means every new device has to be programmed exactly, or it won’t work.
If you lose track of which devices are programmed, it’s smart to wipe the opener’s memory and start over. That way, you know exactly which remotes and keypads have access. Some folks even do this every time they move or get a new roommate, just for peace of mind.
Pro tip: Never leave your PIN written outside or your remote visible in your car—sometimes, the weakest security link is right there in plain sight.
Comparing Overhead Door Remotes to Universal Remotes and Keypads
You might be wondering, “Can I just buy a universal remote or keypad and skip all this brand-specific stuff?” The short answer: sometimes. Universal garage remotes and keypads are designed to “speak” the language of many brands, but they don’t always have fluent conversations.
Overhead Door uses proprietary codes and certain frequencies. Many universal devices can mimic these using a list of code settings, but it’s hit or miss. Universal remotes often require entering a specific code number for Overhead Door, which you’ll find in the instructions. Even then, slow pairing or random “drop-outs” aren’t rare.
If you love the idea of a single device for everything—a “universal remote” for your garage—make sure it explicitly lists Overhead Door compatibility. Some users find that official Overhead Door remotes and keypads are more reliable, less finicky, and usually easier to pair.
On the flip side, if you have multiple brands of openers in your life (maybe at home, work, or family members’ houses), universal might be worth a try. Just be ready for a little extra tinkering.
Resetting or Erasing Overhead Door Remotes and Keypads
Sometimes, you need to “kick out” old devices. Maybe you lost a remote, or you just want to start clean. Resetting the memory on your Overhead Door opener removes all programmed remotes and keypads.
Here’s how the process usually works:
- Find the “learn” or “smart” button on your opener motor unit. It’s often red, purple, or yellow and near the antenna wire.
- Press and hold the button for about 6–10 seconds. When the indicator light goes out, you’ve erased everything. There’s no “undo”—so be sure!
- After this, you’ll need to reprogram remotes and keypads, one by one, following the usual pairing steps.
Some people worry about “deleting” something by mistake. Don’t panic—nothing you do here can break your opener. If you erase the codes, just re-add your remotes and keypads. In fact, this can help if you run into weird glitches or unexplained failures.
Good habit: Reset all codes if you’ve lost a device or had a security concern. It’s the digital equivalent of changing the locks.
Battery Changes and Their Effect on Overhead Door Keypad Sync
You’d be surprised how many sync problems are really battery problems in disguise. If your keypad or remote suddenly stops working, always try a fresh battery first.
Overhead Door keypads typically use standard AAA or 9-volt batteries, while remotes often use coin cells. When power gets low, devices might only work up close (or not at all), leading you to believe there’s a bigger issue—when all you need is a new battery.
Swapping batteries never erases programming on either device. There’s a persistent memory chip inside. However, if a battery is truly *dead* for an extended time, the internal memory might reset on some older models. If your keypad or remote acts “dumb” after a battery change, try reprogramming it just in case.
Keep a couple of fresh batteries handy, especially for outdoor keypads, which don’t always give obvious low-battery warnings. And when all else fails, remember: new batteries cost a lot less than a service call.
How to Tell If Your Overhead Door Remote or Keypad Is Synced
After you’ve paired or reprogrammed your Overhead Door remote and keypad, it’s smart to test both devices—one at a time. Walk a few feet from the garage, press the remote button, and then enter your PIN on the keypad. Watch for the garage door to respond immediately.
If the door hesitates, only opens for one device, or does nothing, here’s what could be wrong:
- The programming process wasn’t completed (maybe you missed the 30-second window).
- A device battery is low.
- The opener’s memory is full. Try erasing and starting over.
Sometimes, you’ll notice the remote works from farther away than the keypad. That’s normal; keypads installed on metal or brick can have reduced range. The main thing is that each device consistently opens and closes the door.
If you ever need to add or remove a device, remember: you’re always syncing *to the opener*, not to each other. That’s the key to keeping everything simple and secure.
Final Thoughts on Overhead Door Garage Remotes and Keypad Sync
So, do Overhead Door garage remotes support keypad sync? Not in the sense that the remote and keypad sync directly to each other—but yes, both can happily live under the same opener’s roof, each programmed independently. The pairing process is more like giving each device its own key to the house, rather than having one device unlock another.
The most common hiccups are in the little details: batteries, programming steps, or using the wrong code. But with patience (and maybe a second cup of coffee), almost anyone can get their Overhead Door system running smoothly. If things get frustrating, remember—every garage system is a bit quirky, but a fresh start usually solves even the stubborn issues.
Next time you’re heading home and want that garage door to open without a second thought, you’ll know exactly how your keypad and remote each do their job. And that’s a little slice of everyday convenience, sorted.
